Key Functions
- Data Transmission System
- Long-distance wireless transmission technology for video and data with low power consumption and high speed
- Self-Powered Solar Panel System
- Self-powered operation using solar panels, eliminating the need for electrical construction
- Disaster Prevention Functions
- CCTV / intelligent sensors / emergency broadcasting systems / emergency call buttons, protecting citizens’ lives and property from natural and social disasters

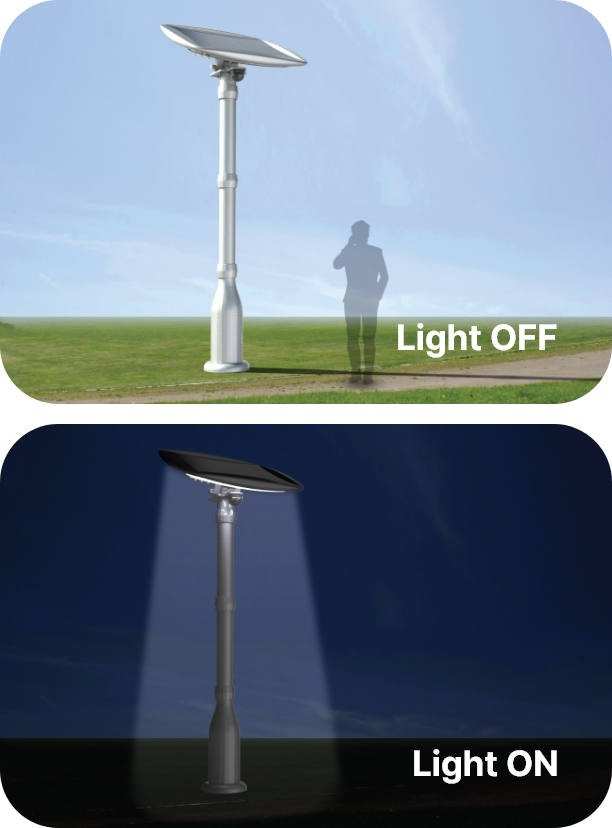

- Public Convenience Features
- LED lamps / Wi-Fi-based automatic LED on/off / dimming control / Wi-Fi services, enhancing public convenience and creating safer nighttime environments
Key Features
- Normal Operation During Disaster-Induced Blackouts
-
- Self-powered operation ensures stable service even during power outages
- Critical components are mounted at the top of the pole to protect equipment during flooding or submersion
- No Communication Network Construction Required
-
- 100% solar charging system eliminates the need for external power supply construction
- Dedicated wireless network removes the need for external communication infrastructure
- Excellent Remote Management and Maintenance Efficiency
-
- Modular battery design improves ease of replacement
- Real-time remote monitoring of lighting operation status and solar/battery charging and discharging conditions

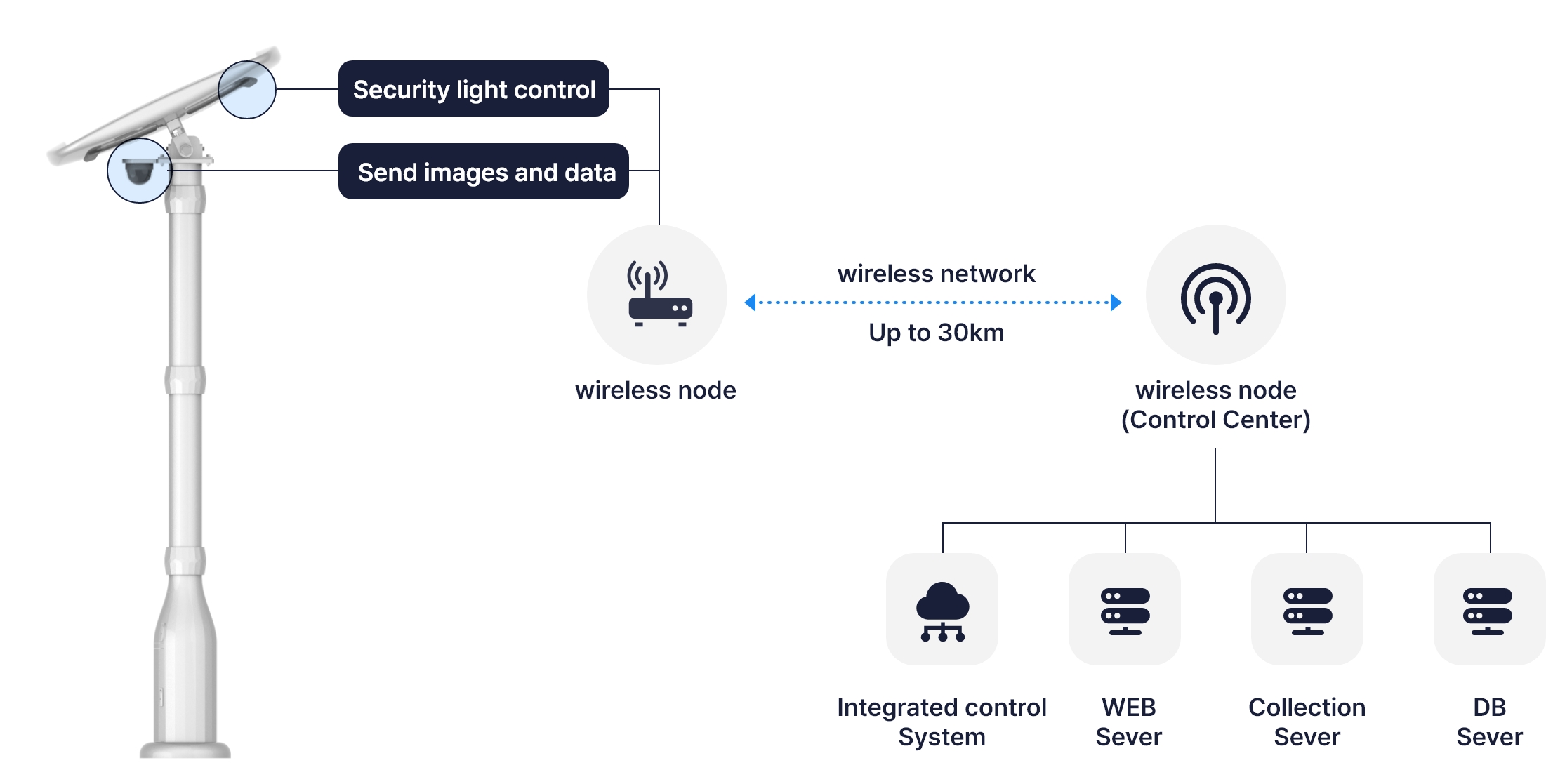

System Connectivity Architecture
Key Specifications
| Item | Detailed Specifications | Remarks | ||
|---|---|---|---|---|
| LED | Security Light (30W / 50W / 60W) | Street Light (80W / 100W / 120W) | Selectable output for security or street lighting | |
| CCTV | Fixed CCTV |
- 2 Megapixel - IP Network Camera |
||
| PTZ Camera |
- 2 Megapixel - IP Network Camera - Rotate & Tilt |
|||
| Power System | Power | Self-powered (Solar + ESS + HPMC) | Wired power option available | |
| ESS | Hybrid ESS (Supercapacitor + LiFePO₄ Battery) | Capacity adjustable based on total power consumption | ||
| Solar | High-efficiency solar modules | Capacity adjustable based on total power consumption | ||
| HPMC | Solar & ESS charge/discharge control, sensor control | |||
| Optional Specifications | Communication Device | Dedicated wireless network (smart-node-based wireless network) | Wired dedicated network option available | |
| Intelligent Sensors | Real-time monitoring of fine dust, CO₂, VOCs (volatile organic compounds), temperature, and humidity | |||
| Broadcast System | Built-in FM receiver, waterproof speaker | |||
| Wi-Fi | Built-in Wi-Fi receiver | |||
