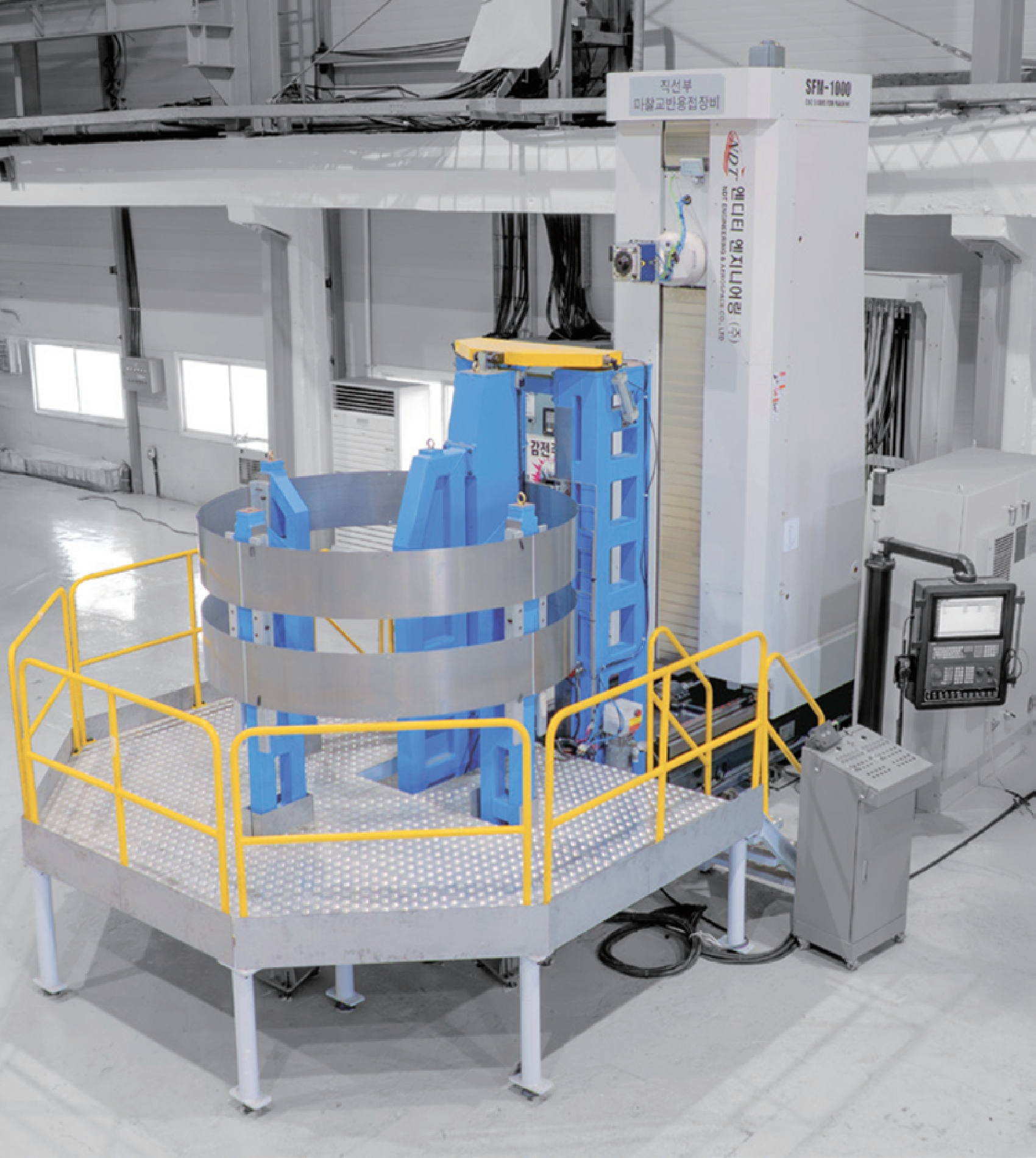

CNC 직선부 마찰교반용접 장비
| Item | Unit | Capacity & Size | ||
|---|---|---|---|---|
| FSW Spindle Head |
Max. Rotational Speed of for welding | rpm | 3,500 | |
| Max. Force Control | kN | 18 | ||
| Travel | Vertical (Y-Axis) | mm | 2,300 | |
| Cross (Z-Axis) | mm | 1,000 | ||
| Feed rate | Vertical (Y-Axis) | Rapid | mm/min | 7,500 |
| Feed rate | mm/min | 1 ~ 4,000 | ||
| Cross (Z-Axis) | Rapid | mm/min | 10,000 | |
| Feed rate | mm/min | 1 ~ 4,000 | ||
