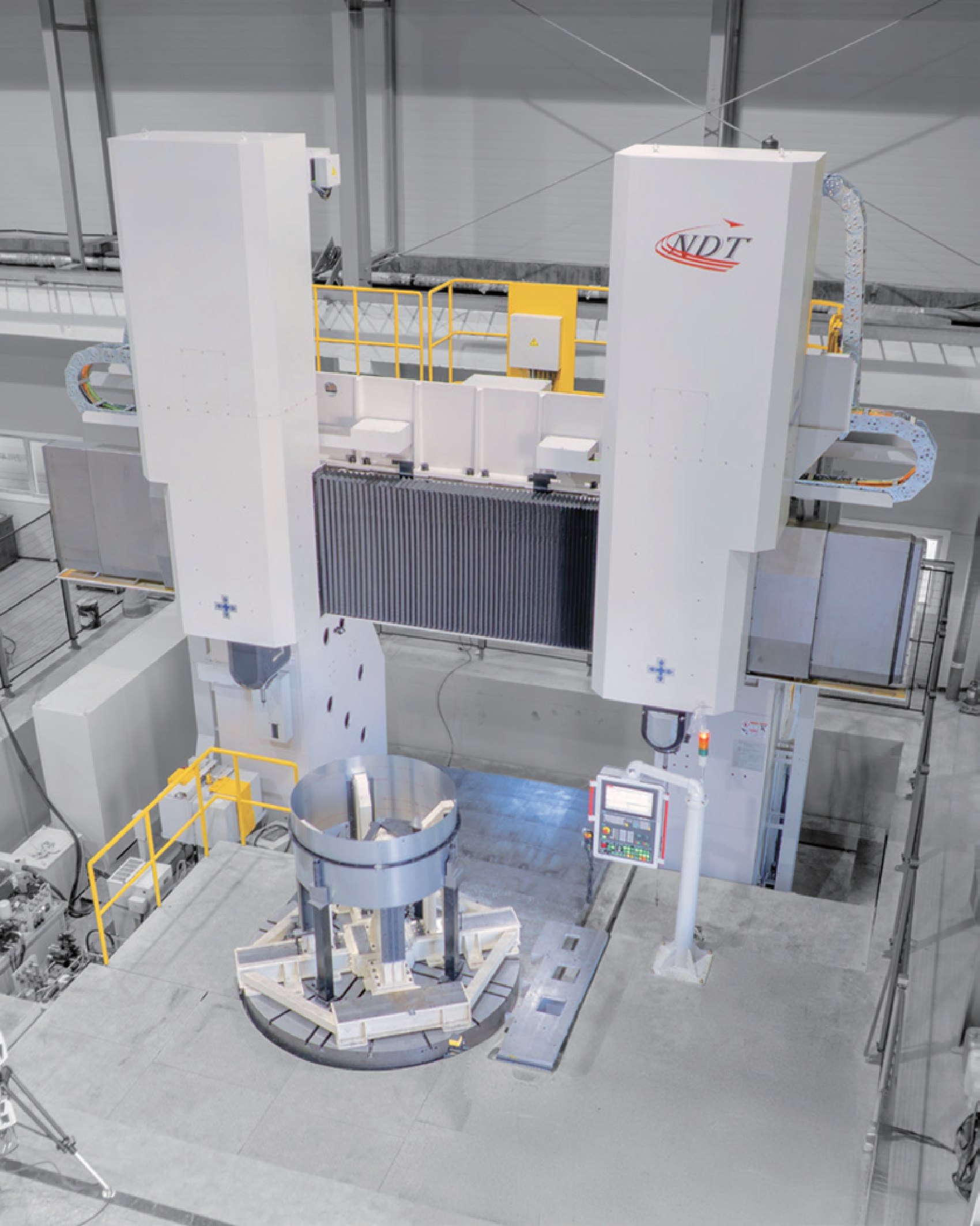

5-Axis CNC FSW Integrated System
| Item | Unit | Capacity & Size | |
|---|---|---|---|
| 2-axis FSW Head |
Horizontal Travel | mm | – 500 ~ +2,000 |
| Vertical Travel | mm | 1,500 | |
| Max. Rotational Speed for welding | rpm | 5,000 | |
| Max. Force Control | kN | 20 | |
| 2-axis Milling Head |
Horizontal Travel | mm | -2,000 ~ + 500 |
| Vertical Travel | mm | 1,500 | |
| Max. Rotational Speed of spindle | rpm | 20,000 | |
| CNC Rotary Indexing Table |
Table Diameter | mm | 2,500 |
| Max. Work-piece Height | mm | 1,500 | |
| Moving Stroke | mm | 2,000 | |
