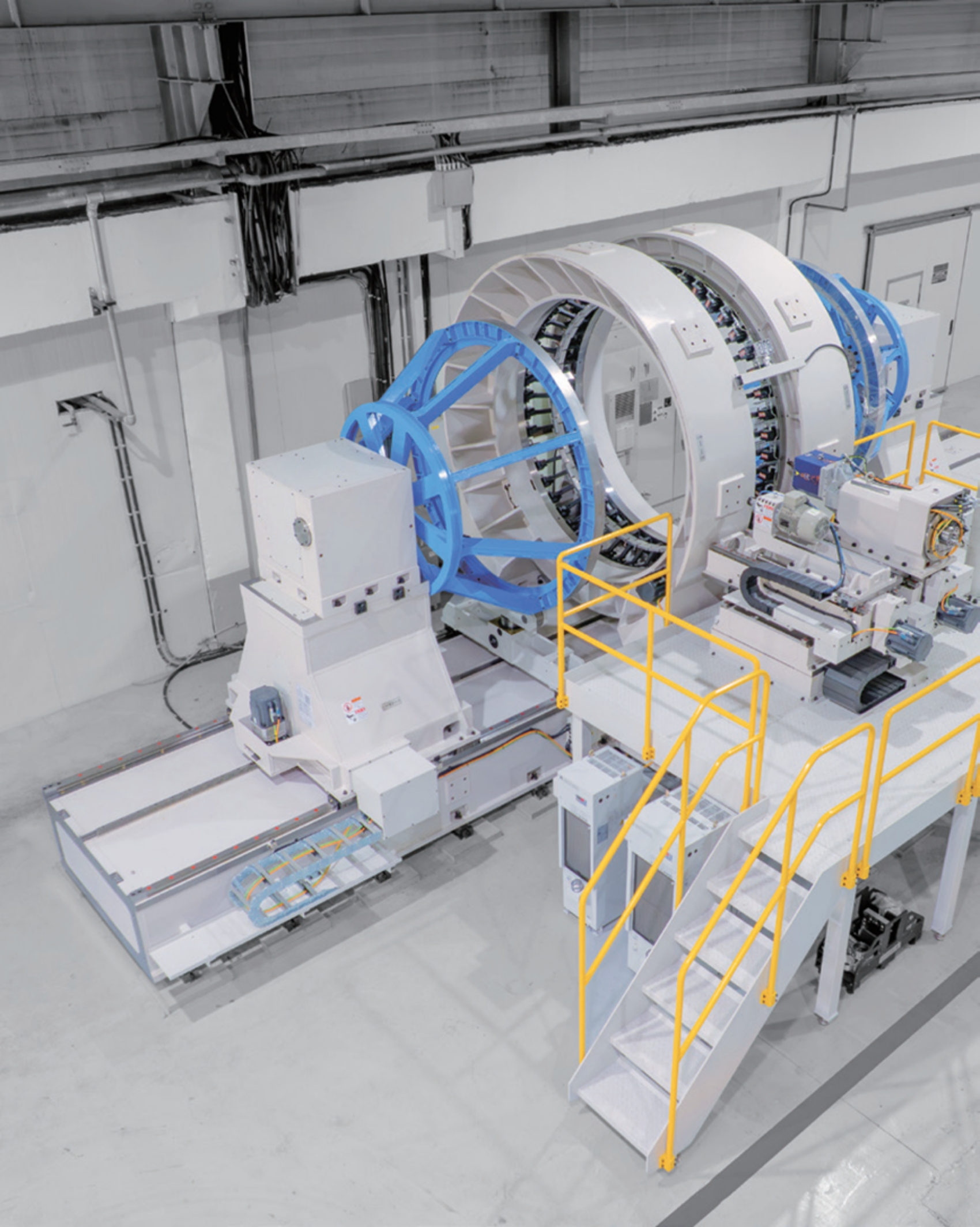

CNC Circumferential FSW IS
| Item | Unit | Capacity & Size | |
|---|---|---|---|
| FSW Spindle Head (Retractable Pin) |
Max. Rotational Speed of for welding | rpm | 3,500 |
| Max. Force Control | kN | 18 | |
| Travel | X-axis Travel Stroke | mm | 600 |
| Z1-axis Travel Stroke | mm | 300 | |
| Z2-axis Travel Stroke | mm | 300 | |
| Rotary Indexing Table |
Max. Work-piece Length | mm | 3,400 |
| Clamping Force | N | 7,500 | |
| Tailstock Force | N | 5,497 | |
| Max. allowable load of Turning Roll | kN | 50 | |
