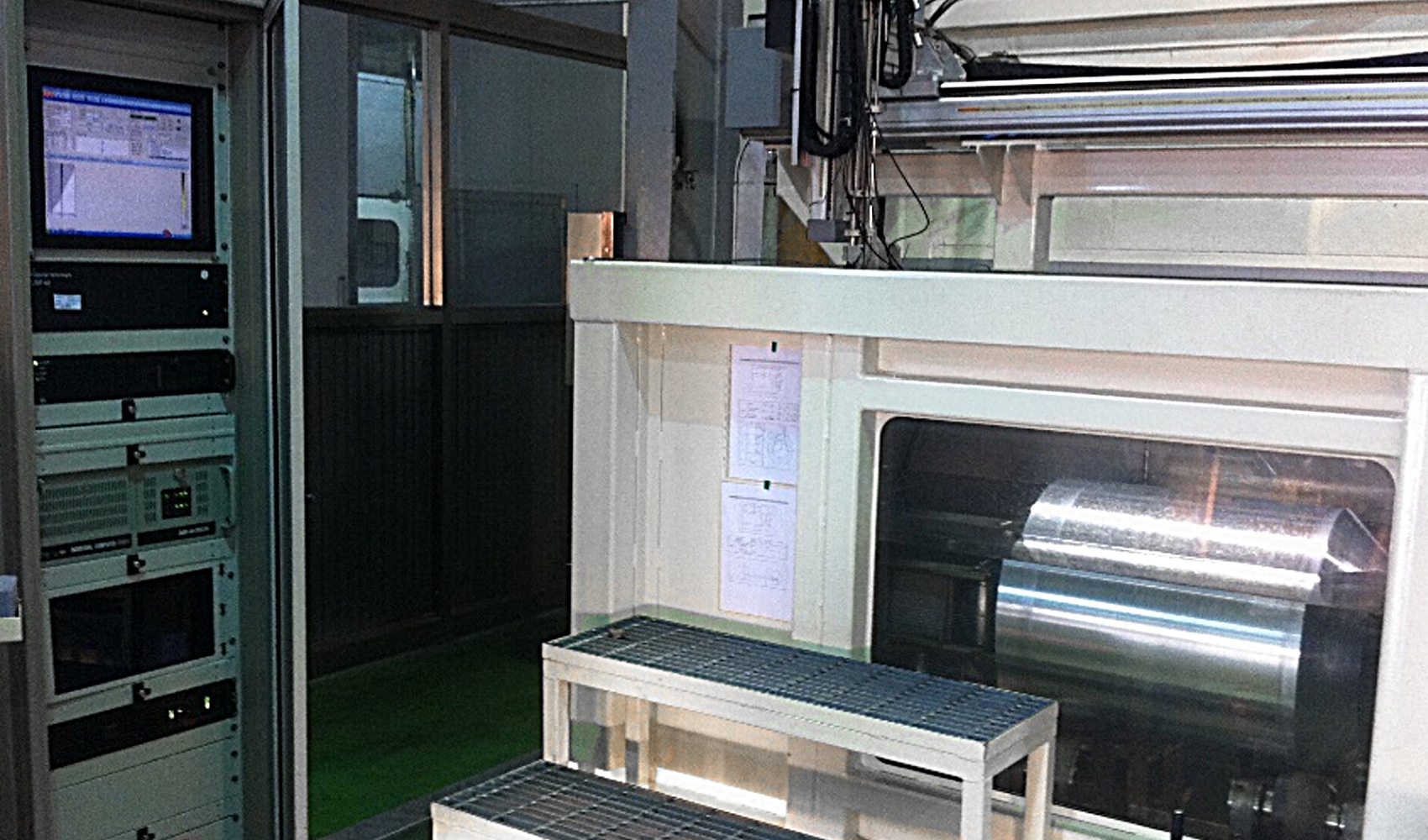

C-SCAN SYSTEM
Function
- Large tank C-Scan for forged metal product or composite parts
- 다Multi-channel or phased array UT for various test requirements
- Turning roller device for cylindrical parts
- Automatic evaluation according to customer’s specification
PERFORMANCE
- Coupling
- Full immersion
- Frequency
- Depend on application
- Flaw
- Internal flaw & subsurface flaw
- System Configuration
-

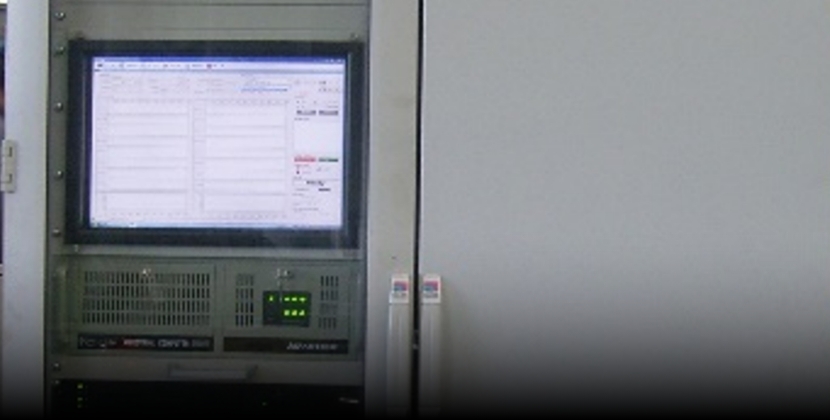

High performance ultrasonic electronics

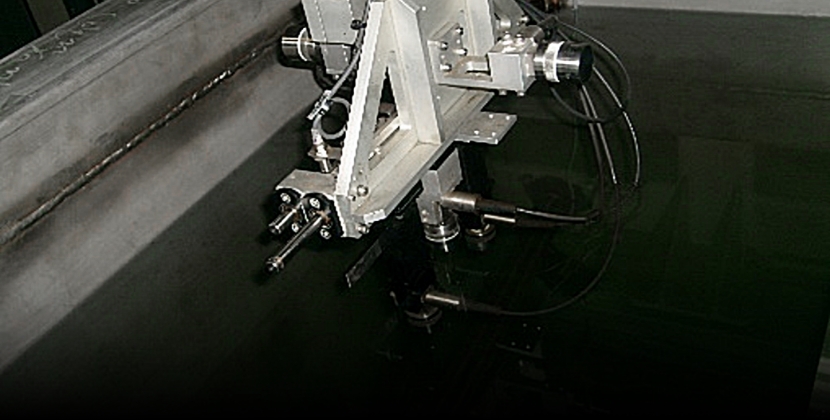

4 axes precision robot scanner with immersion tank
Main control computer system

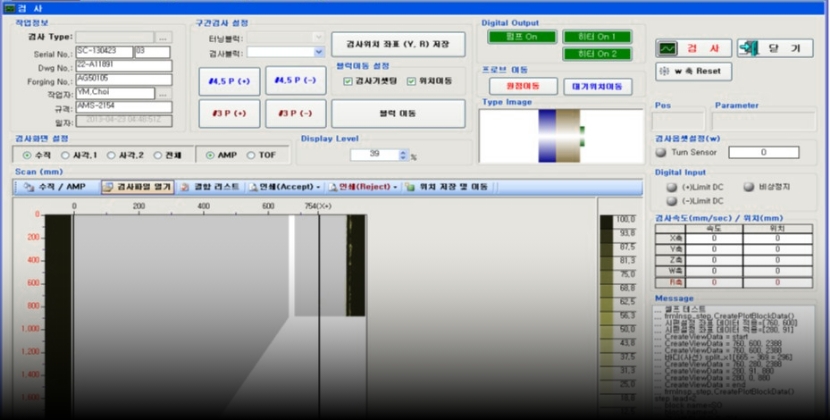

C-Scan software for control & evaluation
