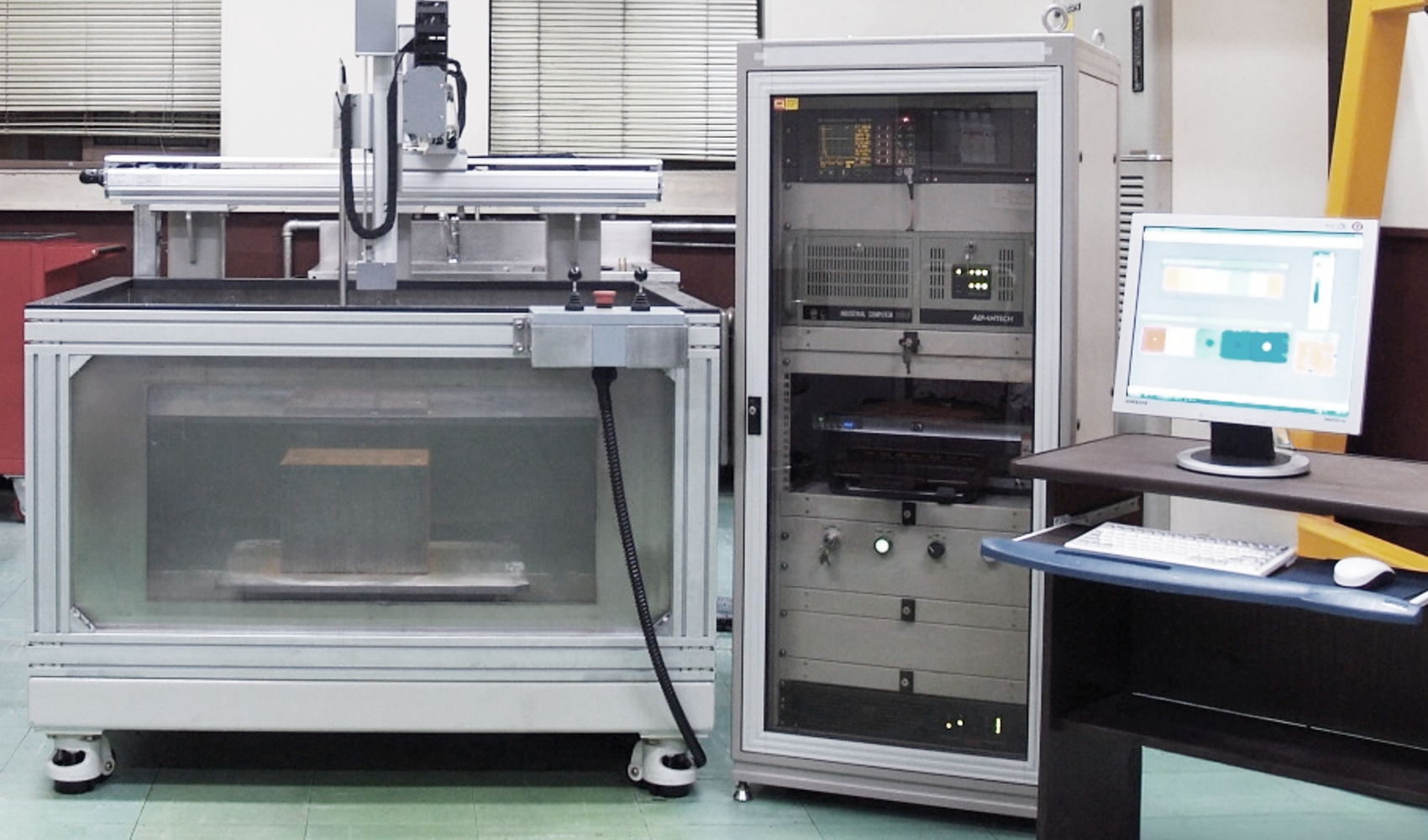

Ultrasonic C-Scan System
Function
- High performance ultrasonic flaw detector

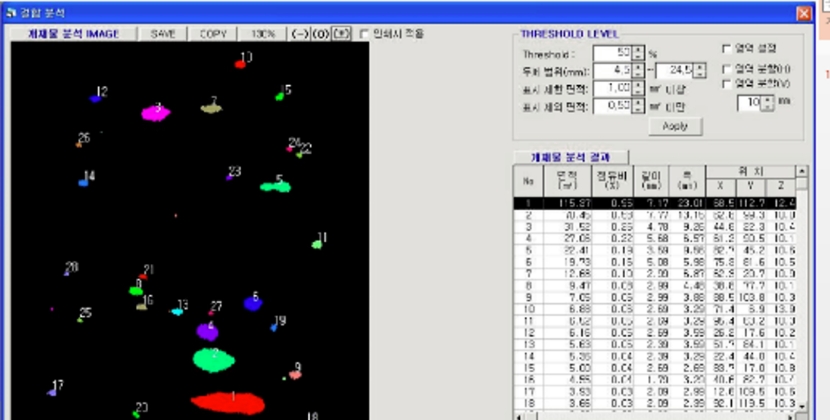

- Intelligent and convenient C-Scan software
- Precise 4-axes robot scanner and motion controller

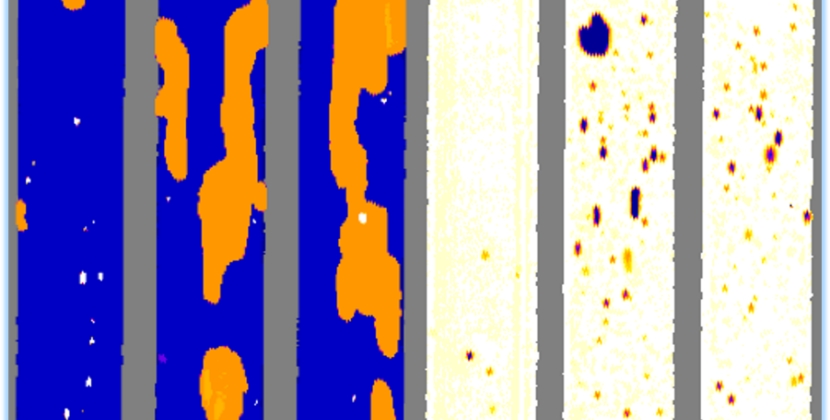

- HIC parameter calculation according to NACE TM0284

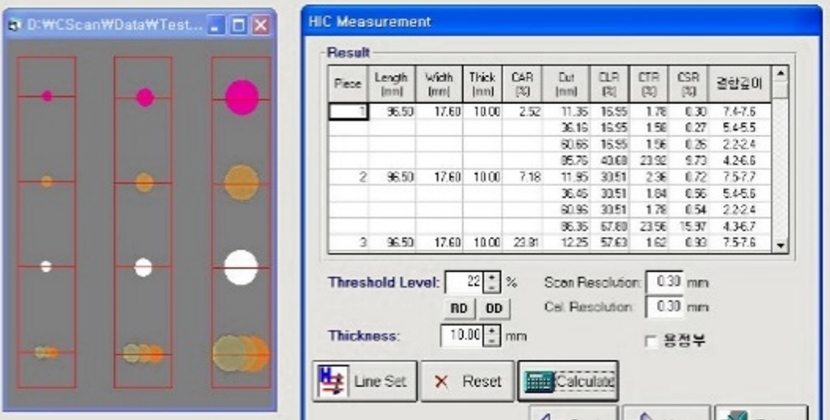

HIC PARAMETER
- Crack Area Ratio
- CAR = (Discontinuity Area / Scanned Area) × 100%
- Crack Length Ratio
- CLR = (L : Total Crack Length / W : Width) × 100%
- Crack Thickness Ratio
- CTR = (T : Crack Thickness / D : Thickness) × 100%
- Crack Sensitivity Ratio
- CSR = (Σ Aₙ / (W × T)) × 100%
