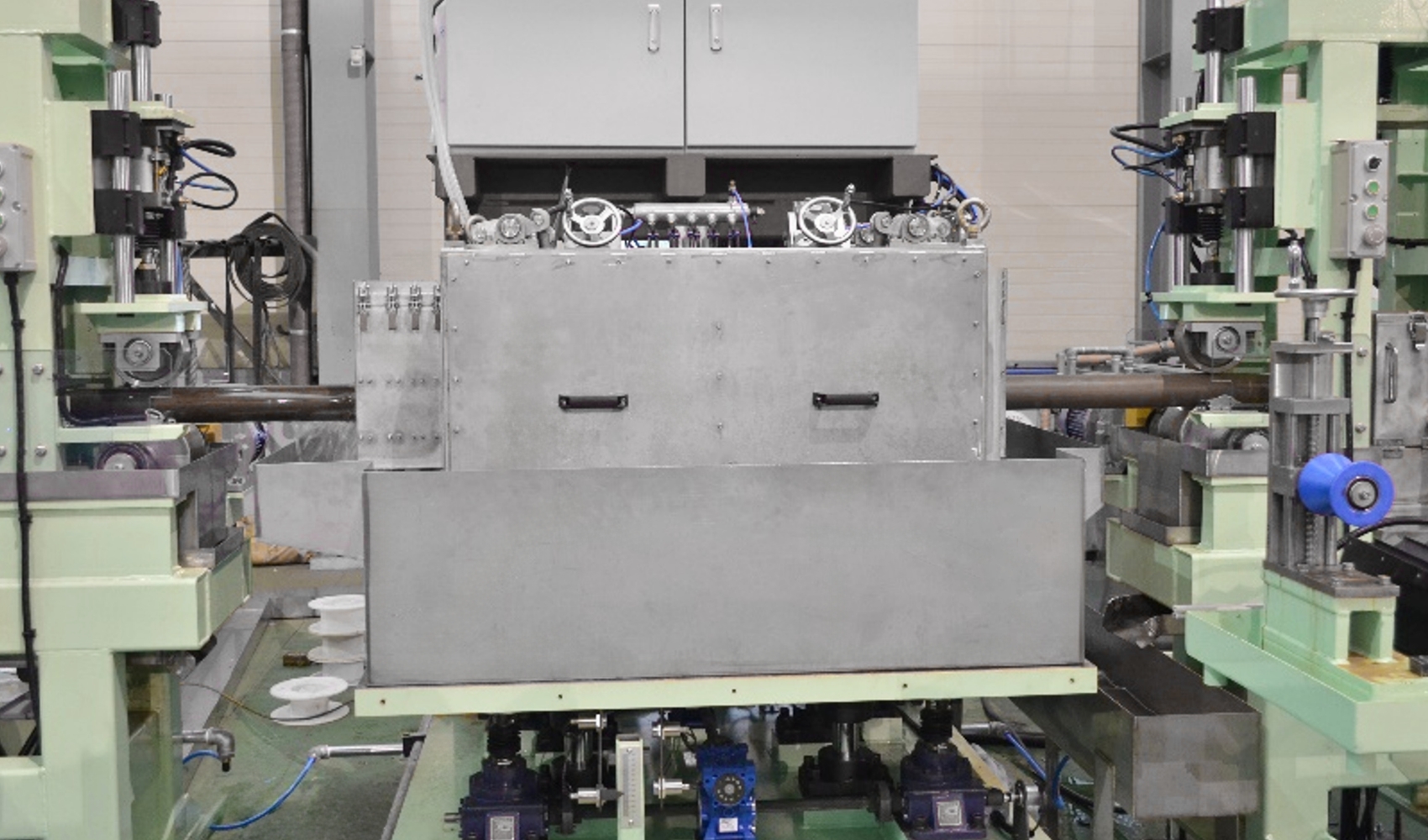

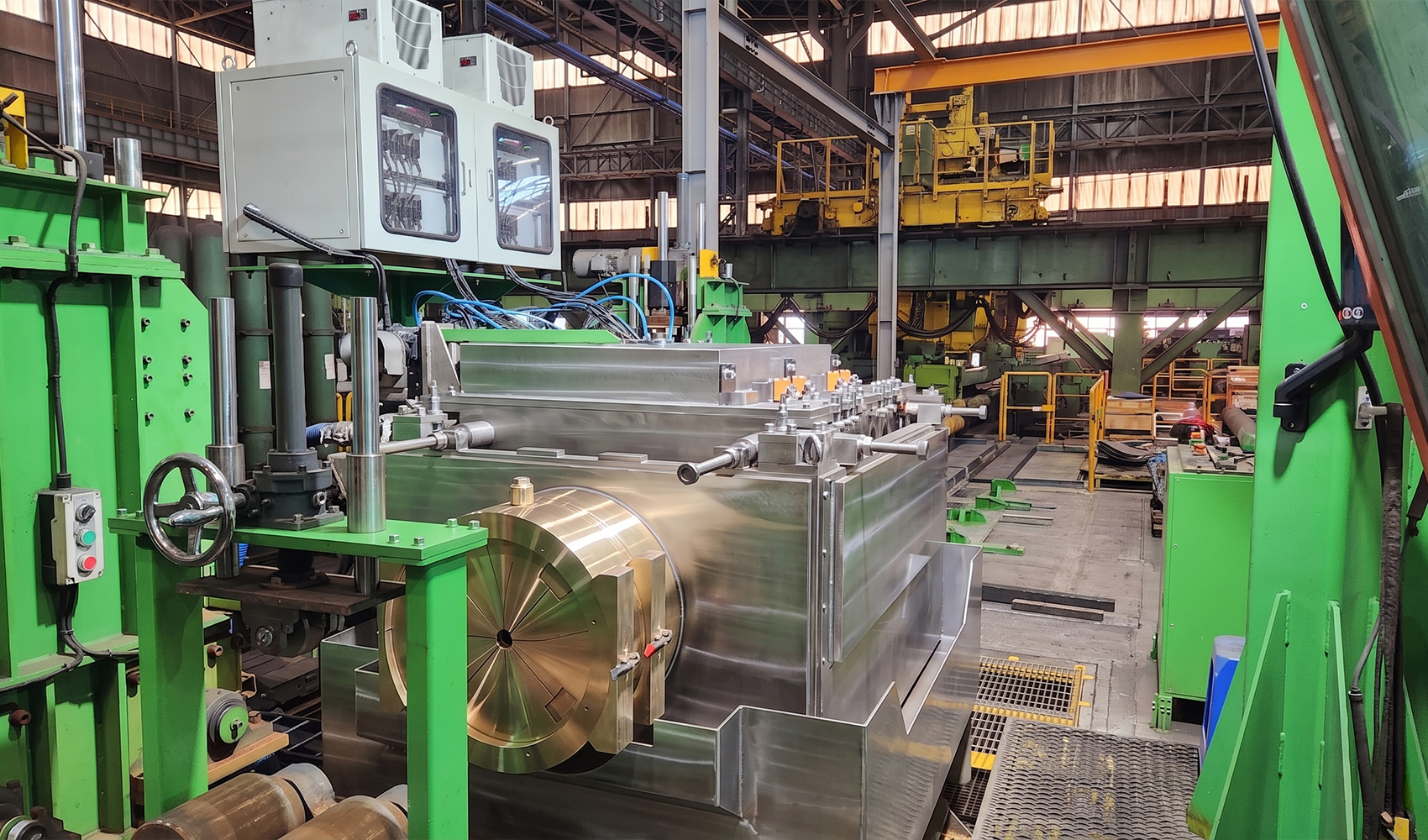

Billet UT System
Function
- In-line inspection system to detect internal flaw
- Combination with magnetic particle test system

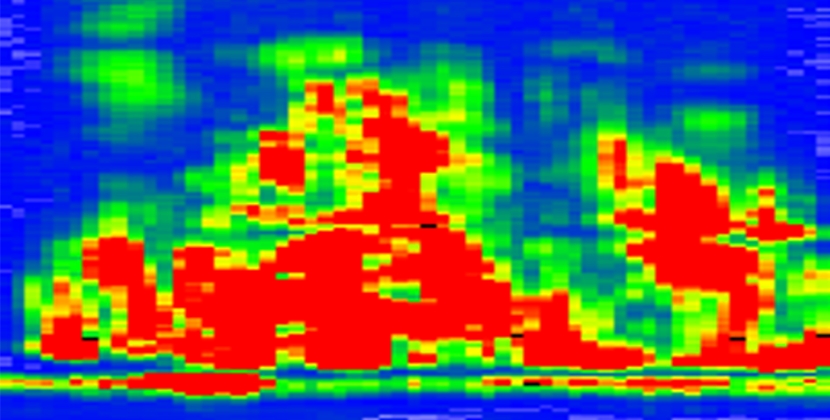

- Conventional multi-ch. or phased array technique
- Optional high pressure cleaning device & brushing device
PERFORMANCE
- Coupling
- Water gap, water column or immersion
- Frequency
- 2 ~ 5 MHz
- Flaw
- internal flaw
- Flaw Detectability
- Flat bottom hole
12mm FBH (5MHz probe)
2mm FBH (2MHz probe)
3mm FBH (2MHz probe)
- UT Method
- Conventional multi-channels or Phased Array
- Billet Type
- Square & Round
