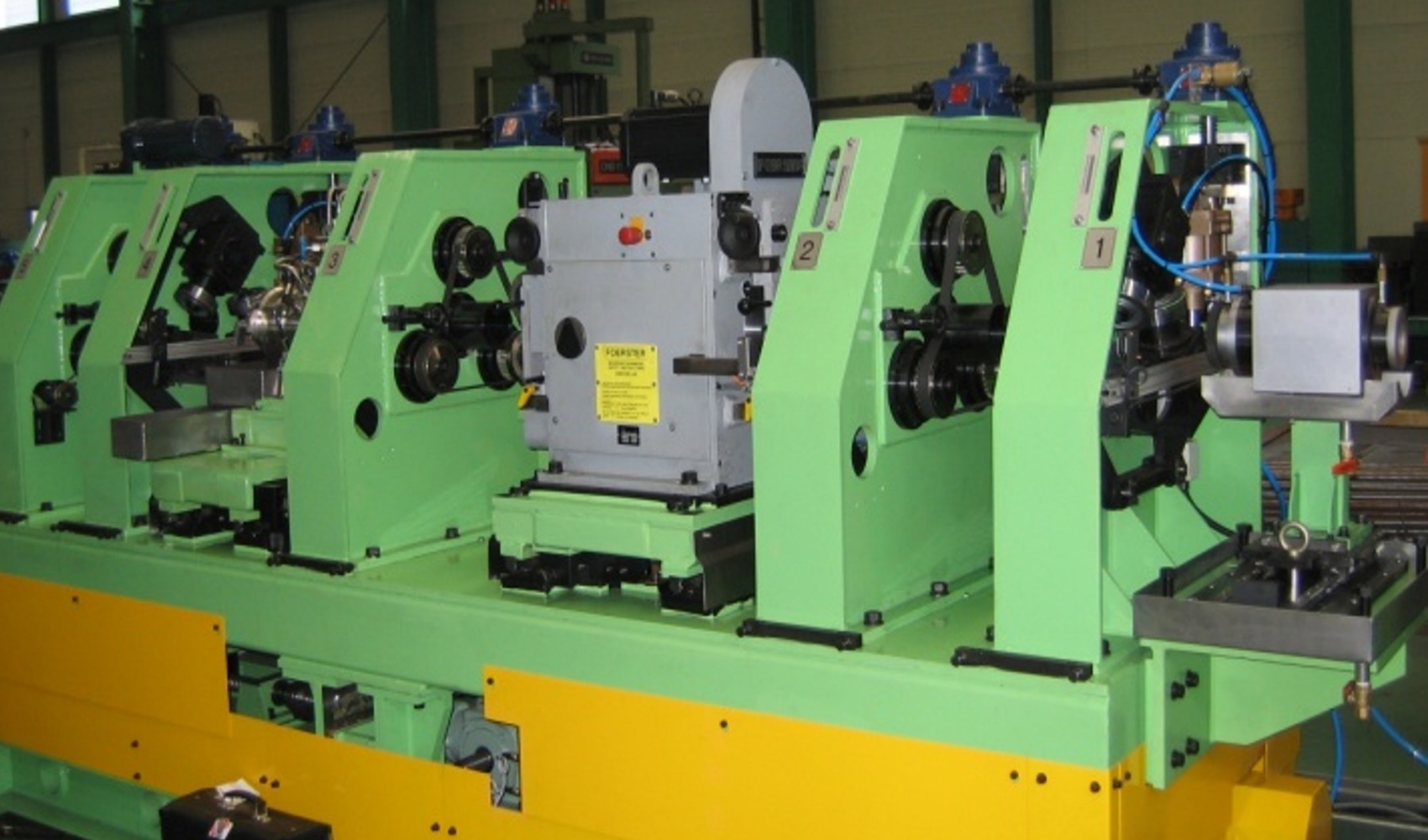

ROUND BAR MFLT for black bar
Function
- Black bar inspection system to detect surface flaw
- Combination with Ultrasonic Test system
- Magnetic Flux Leakage Testing for rough surface products
- Optional Dia. / Length measurement & material sorting
PERFORMANCE
- Flaw
- Surface crack (longitudinal)
- Flaw Detectability
- 0.15mm(D) x 0.2mm(W) x 15mm(L) Notch
- Test speed
- approx. 2 ~ 4m/sec
- System type

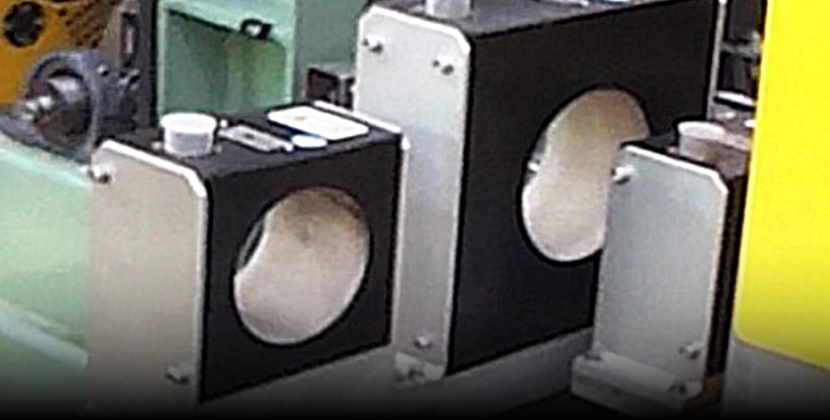

- Flux leakage testing with rotating probe
- Number of probes
- Max. 12ch.
- Scanning track width
- 7.5 / 10 / 12.5 mm
