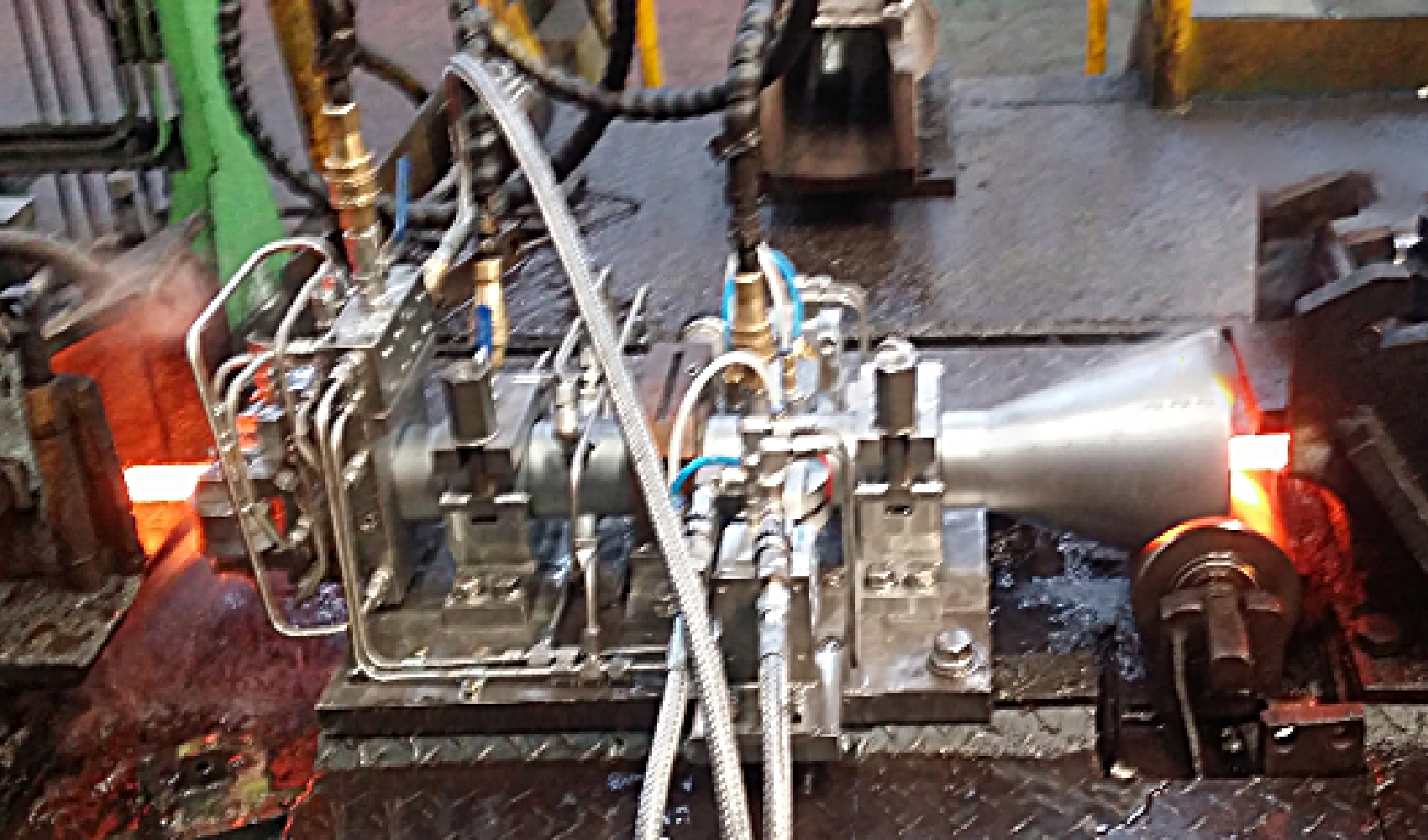

HOT WIRE ECT SYSTEM
Function
- Hot wire inspection system to detect surface flaw

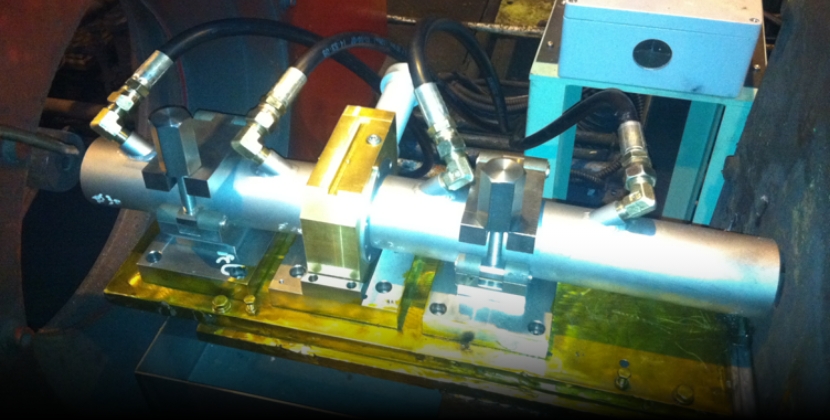

- Water cooling jacket to prevent damage of the coil
- Eddy current coil position adjusting

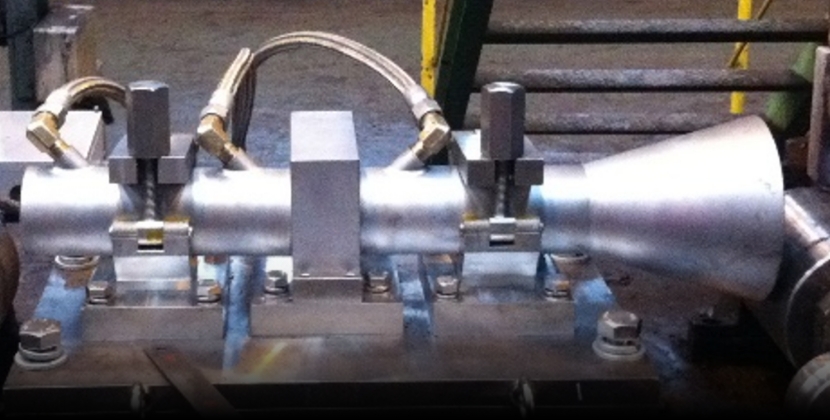

- Entry & exit guide nozzle
PERFORMANCE
- Flaw
- Roll mark, scab and etc.
- Dimension of wire
- 5.5 mm ~ 29.3 mm
- Temperature of wire
- Curie +50℃
- Minimum defect
- 0.2mm(D) x 0.2mm(W) x 20mm(L)
- Max. inspection speed
- 150m/sec
