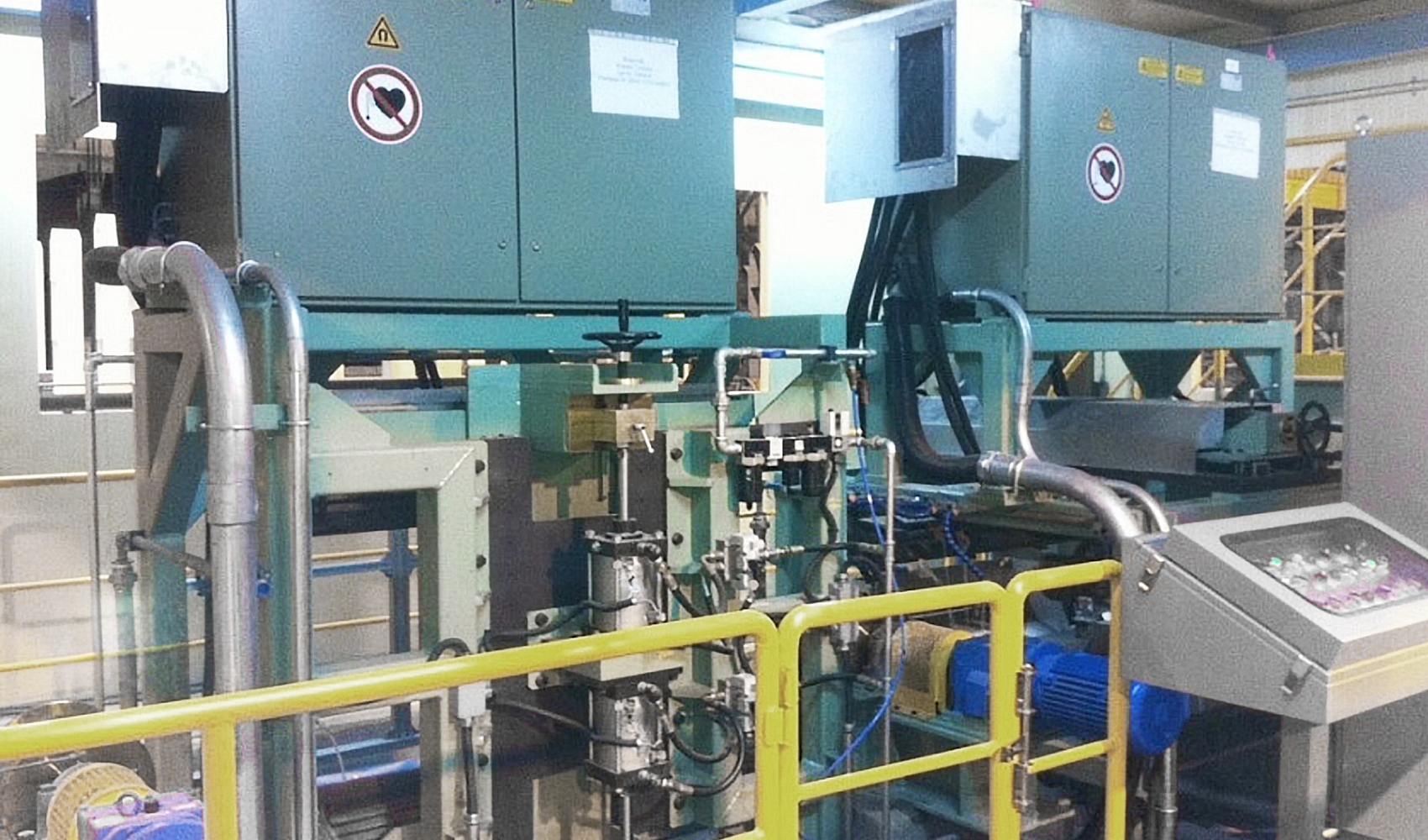

BILLET MT
Function
- Square & Round billet surface inspection system
- Contact or non-contact magnetization
- Using the fluorescent magnetic particle
- Optional automatic flaw recognition system
PERFORMANCE
- Flaw
- Surface flaws
- Magnetization
-

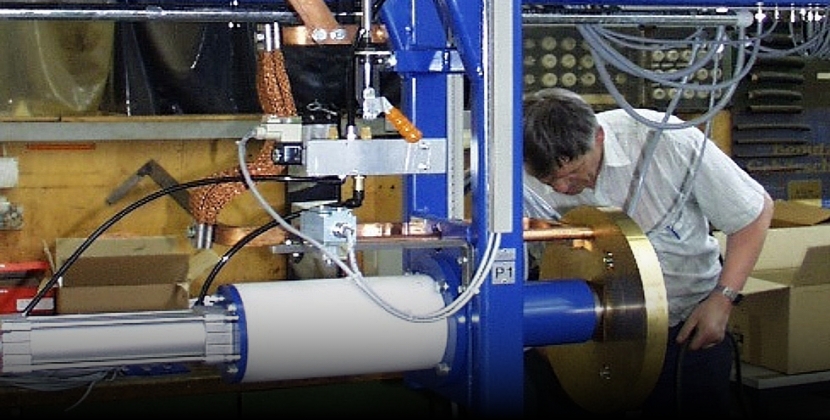

Contact : Clamping electrode

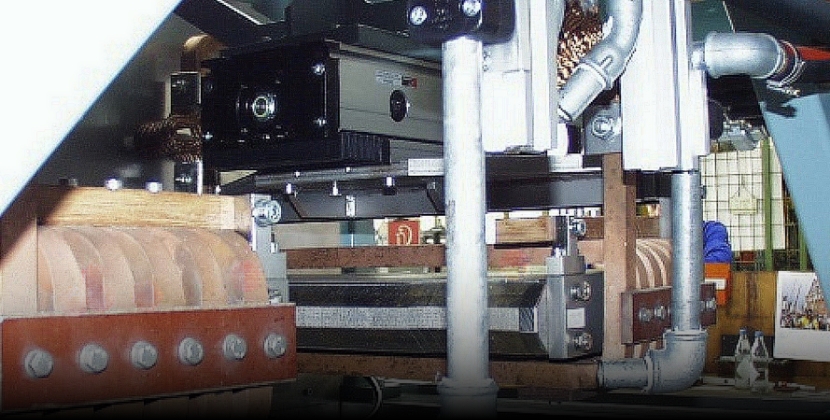

Non-contact : Yoke & coil

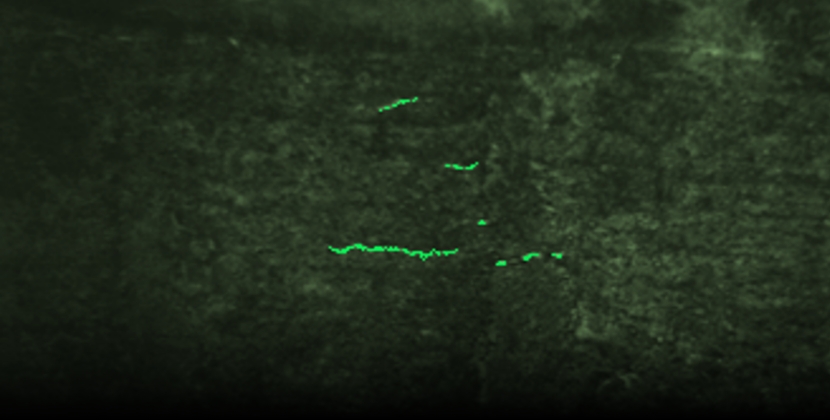

- Flaw recognition
-
Manual
Automatic by CCD camera
- Flaw Detectability
-
5mm(L) x 0.3mm(D) x 0.05mm(W)
DIN EN ISO 9934
- Fluorescent magnetic particle type
- Wet continuous (shower type)
