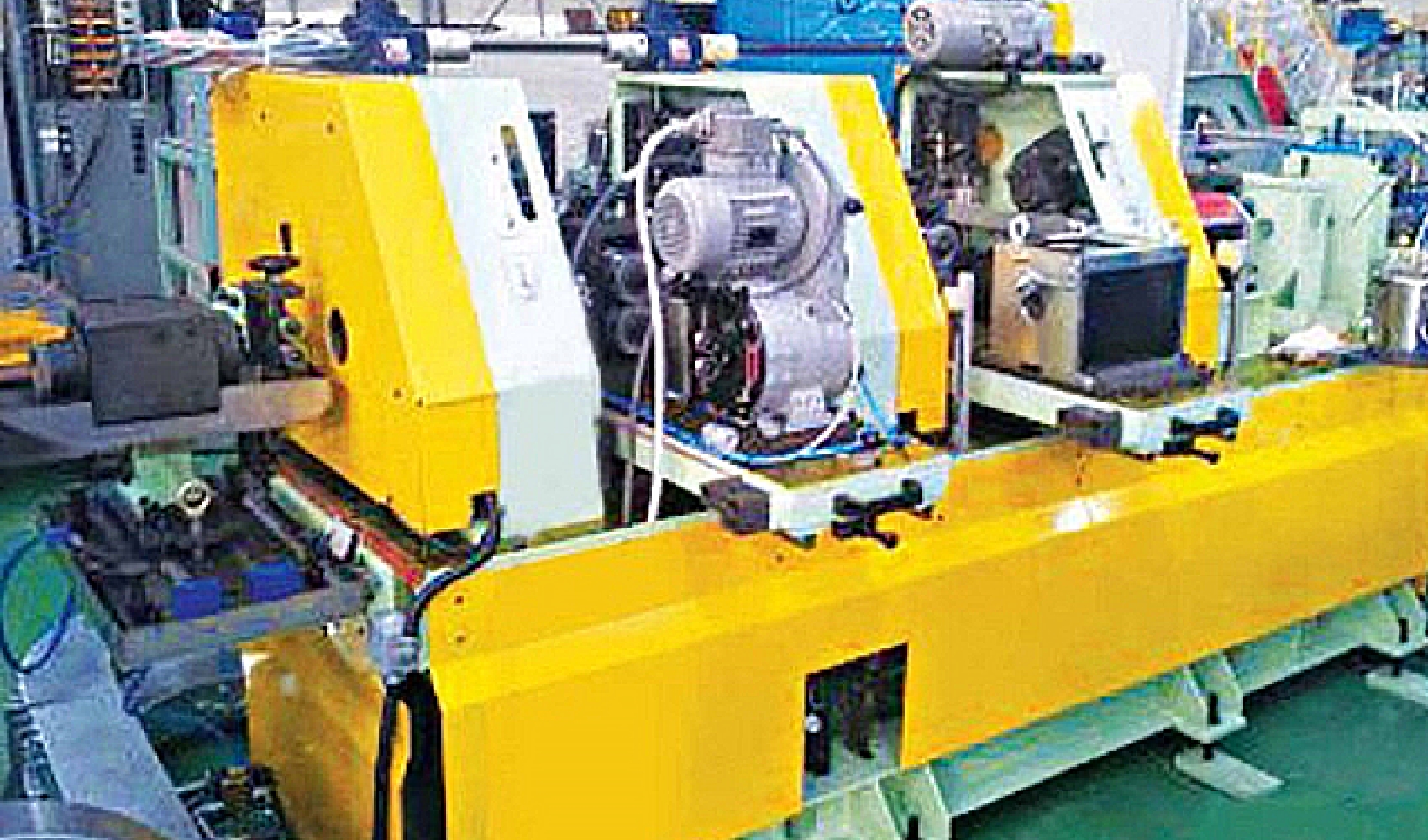

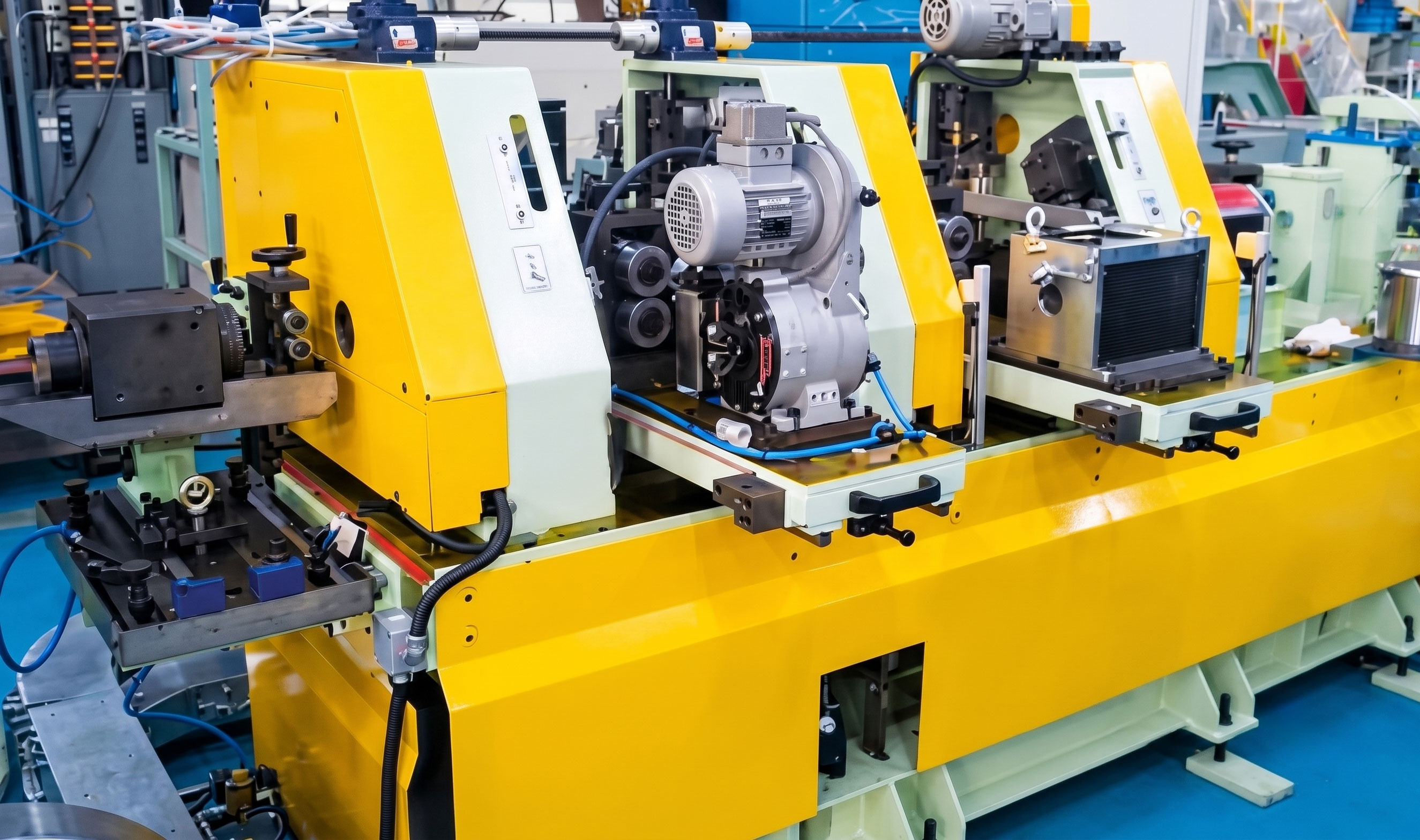

ROUND BAR ECT for bright bar
Function
- Bright bar inspection system to detect surface flaw
- Combination with Ultrasonic Test system
- Eddy current testing for fine surface products
- Optional Dia. / Length measurement & material sorting
PERFORMANCE
- Flaw
- Surface flaw
- Flaw Detectability
-
Depending on surface condition

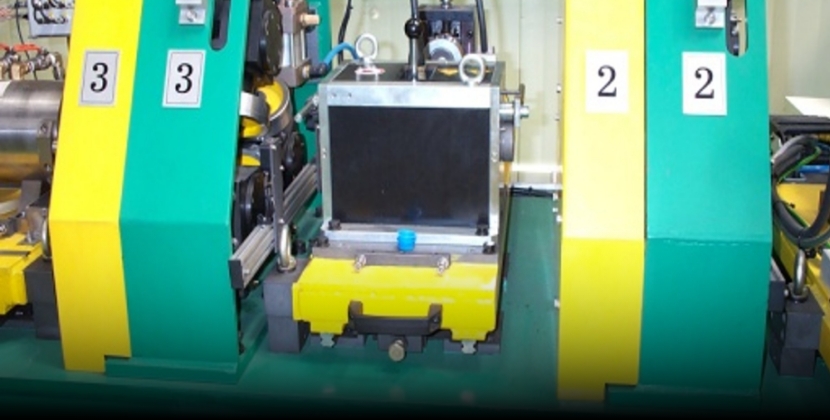

Encircling ECT : Transverse flaw
- approx. Length 3.0mm/Depth 0.1 mm
- Test speed max. 90 m/min

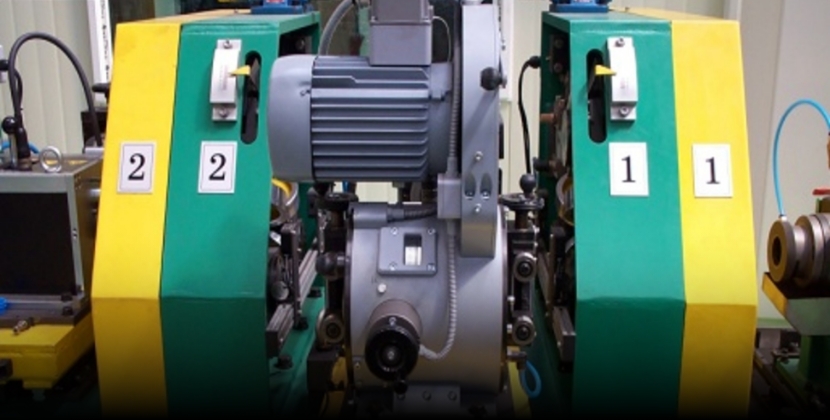

Rotating ECT : Longitudinal flaw
- approx. Length 5~20mm/Depth 0.1mm
- Test speed max. 60m/min
