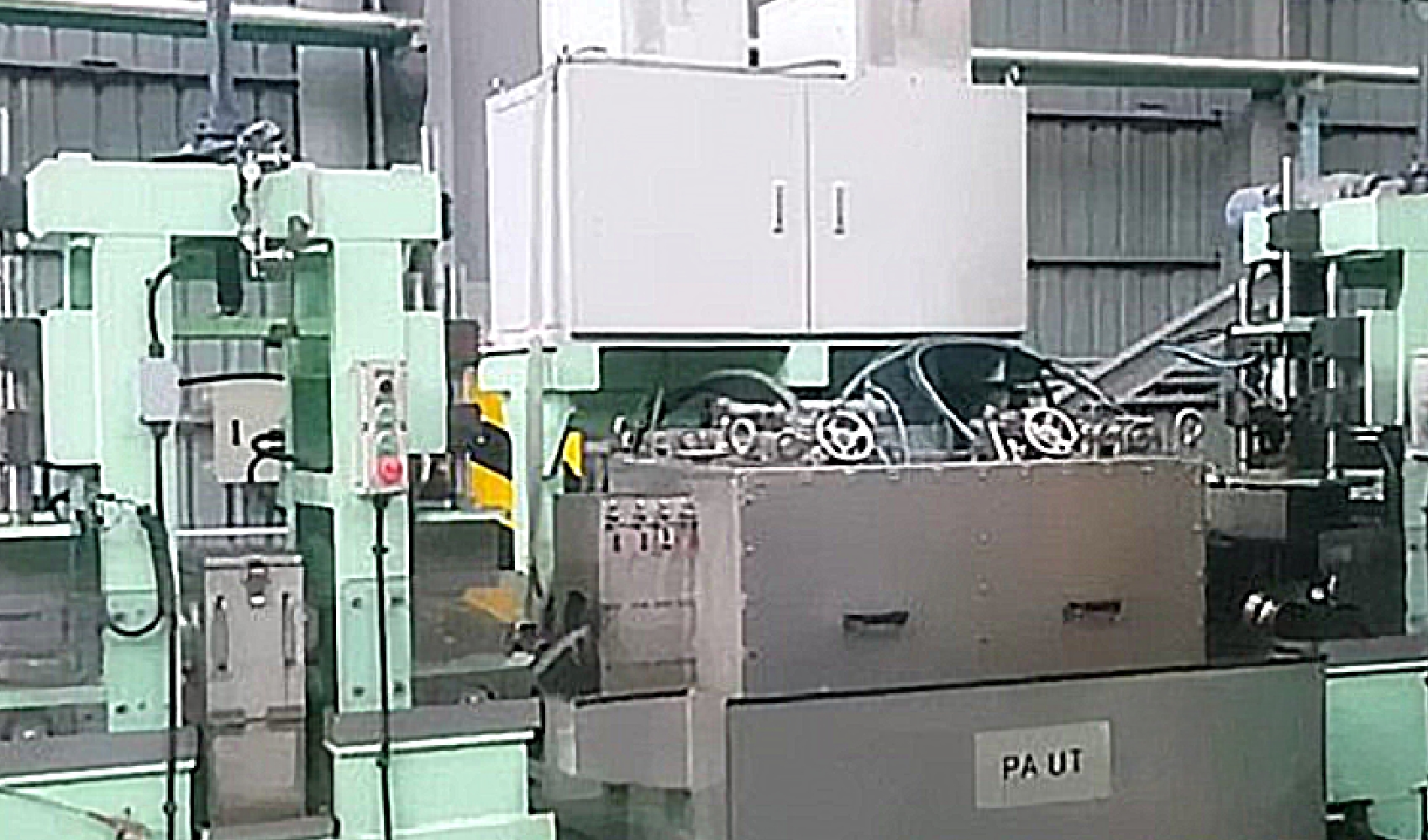

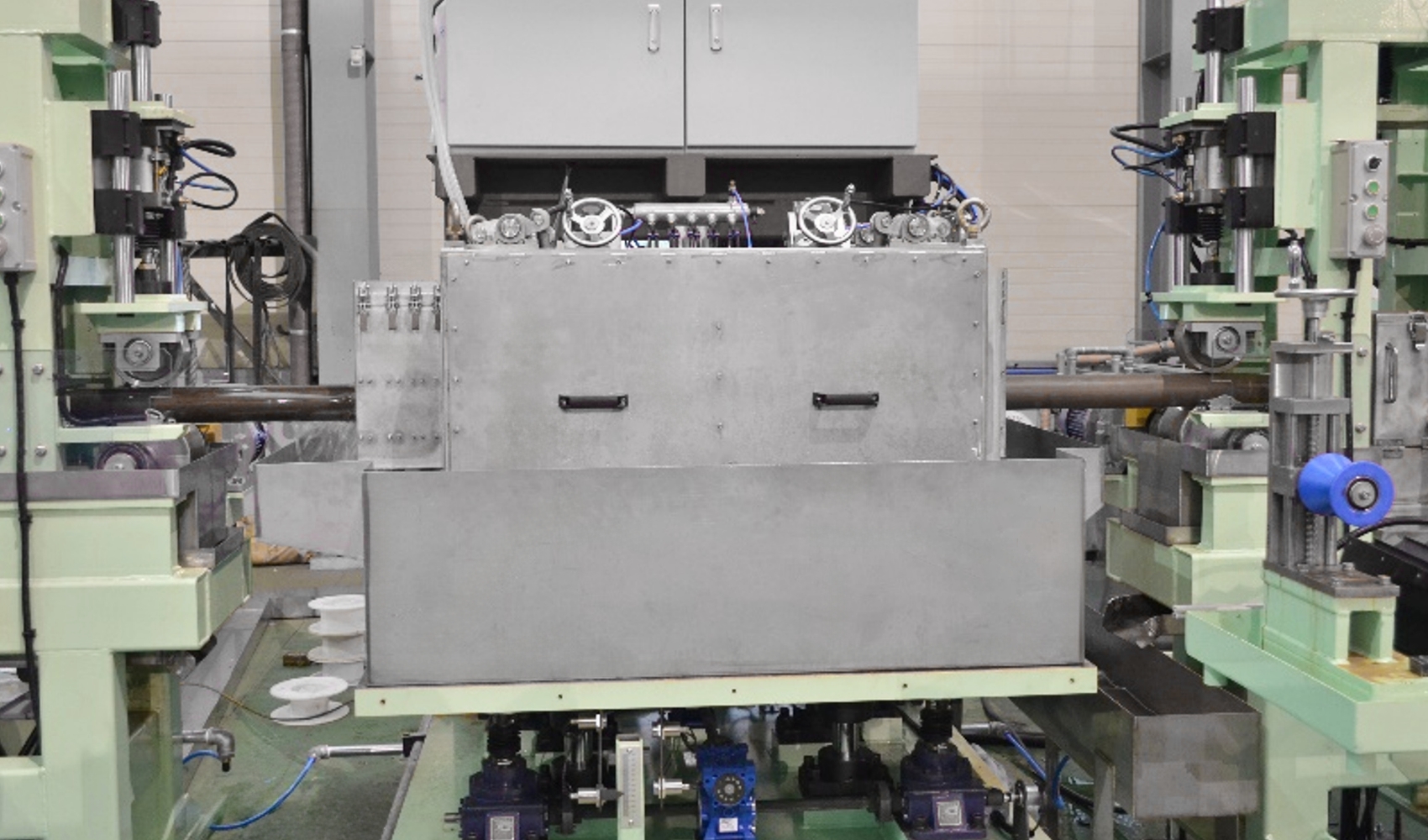

ROUND BAR UT
Function
- Round bar inspection system to detect internal flaw
- Combination with ECT(for bright bar) or MFLT (for black bar)

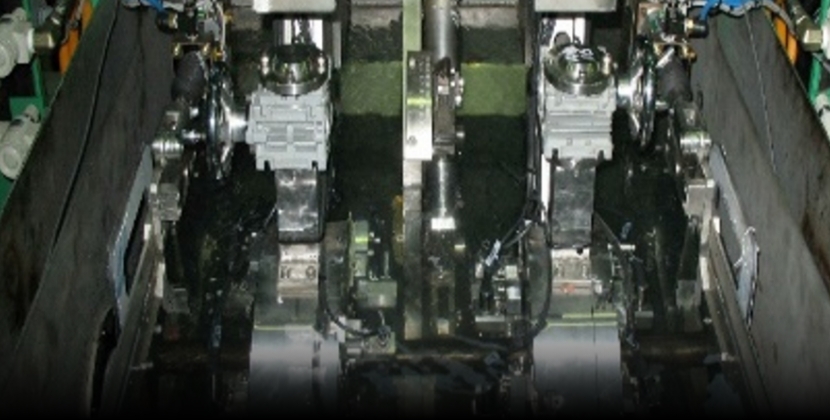

- Phased array immersion UT or rotary UT
- Optional Dia. / Length measurement & material sorting
PERFORMANCE
- System type
-
Phased array immersion UT
Rotary UT
- Flaw
-
Straight beam : Internal flaw (inclusion & porosity)
Angle beam (+/-): Subsurface flaw
- Minimum flaw
- 0.5mm SDH (Depending on test condition)
- Test speed
-
max. 120 m/min (Depending on bar diameter,
flaw length, No. of channels, etc.)
