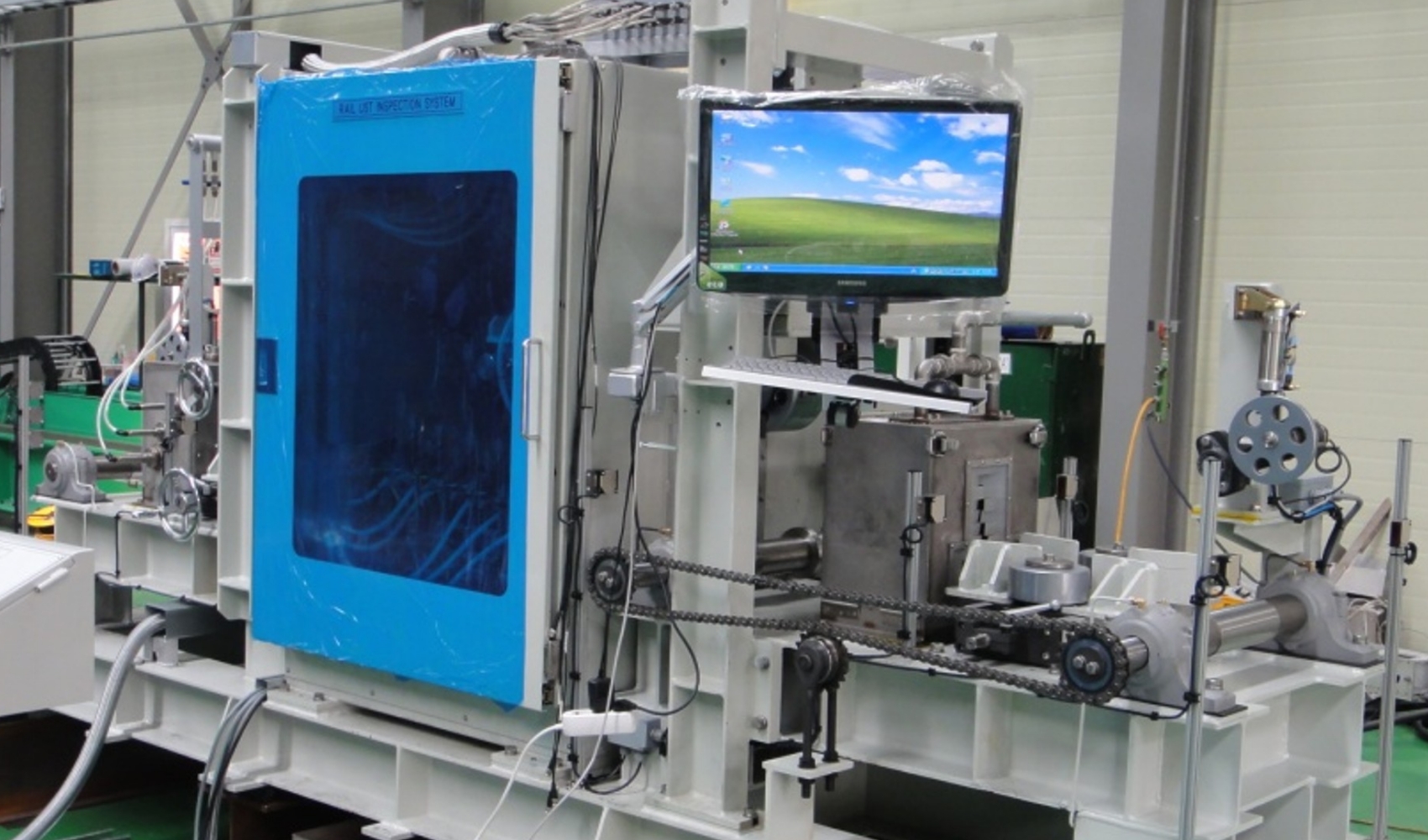

RAIL UT
Function
- Automatic inspection for various types of rail
- Conventional multi-channel & non-contact water-jet coupling

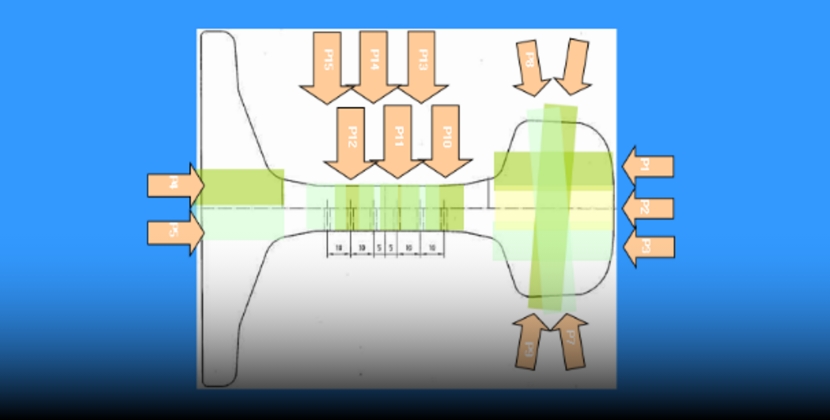

- Inspection for 3 parts of the rail (head, web, bottom)
- Additional probe installation is available.
PERFORMANCE
- Coupling
- Water-jet
- Frequency
- 5 MHz
- Flaw
- Internal flaw
- Test Method
- >15 channels (head:7ch, web: 6ch, base: 2ch)
- Flaw Detectability
- 2mm FBH & TDH (According to EN 13674-1)
