Automated ERW Pipe NDT Inspection System

BUSINESS NDT Automation Automated ERW Pipe NDT Inspection System

The NDT Automation Division combines non-destructive testing technology with automated control systems
to enhance quality management and strengthen data-driven smart manufacturing capabilities.

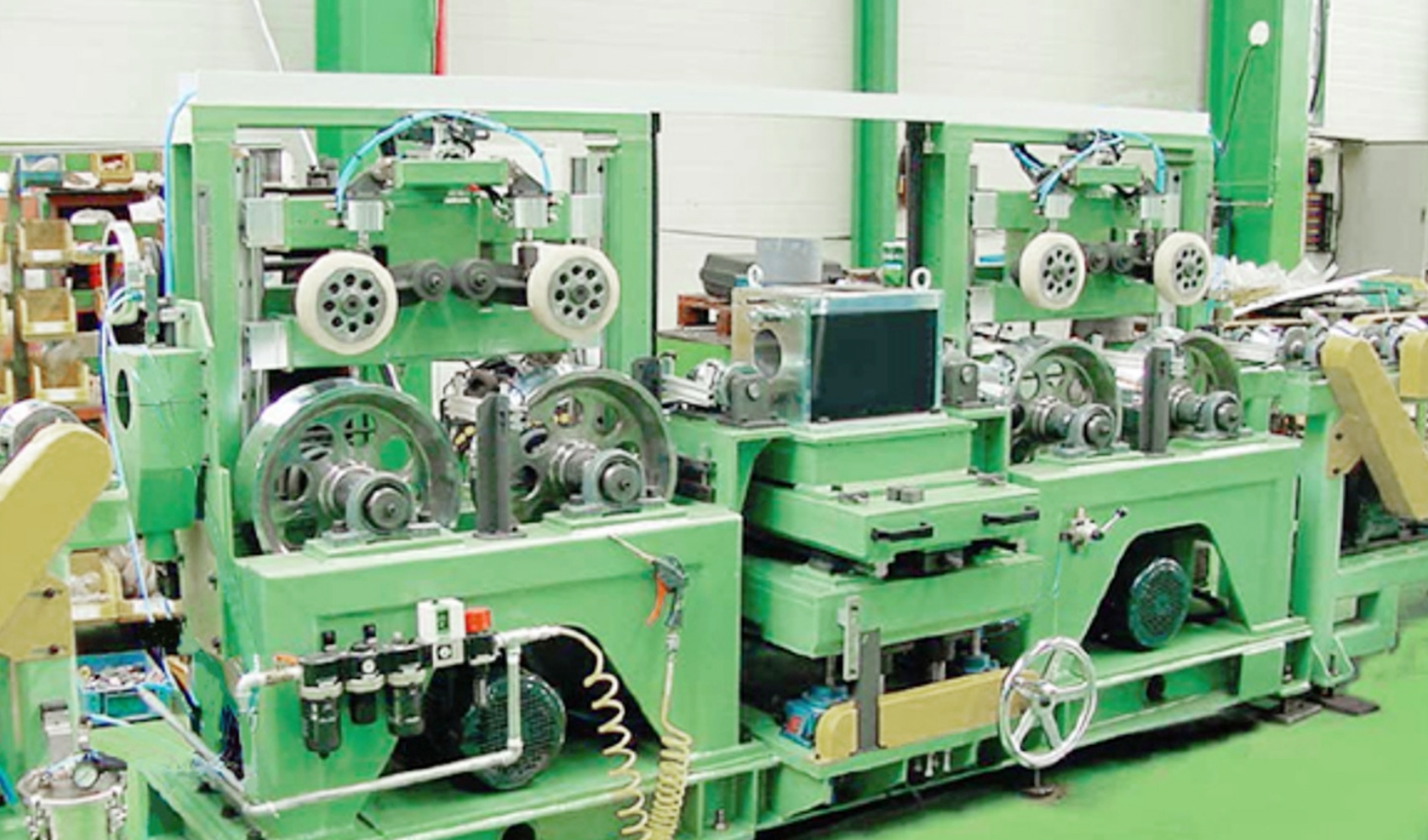

ON/OFF-LINE ET (ECT or MFLT)

ON/OFF-LINE ET (ECT or MFLT)

Function

  • On-line & Off-line inspection system to detect surface flaw
  • Magnetic flux leakage testing for rough surface products
  • Eddy current testing for fine surface products
  • Encircling type for TF / Rotating type for LF

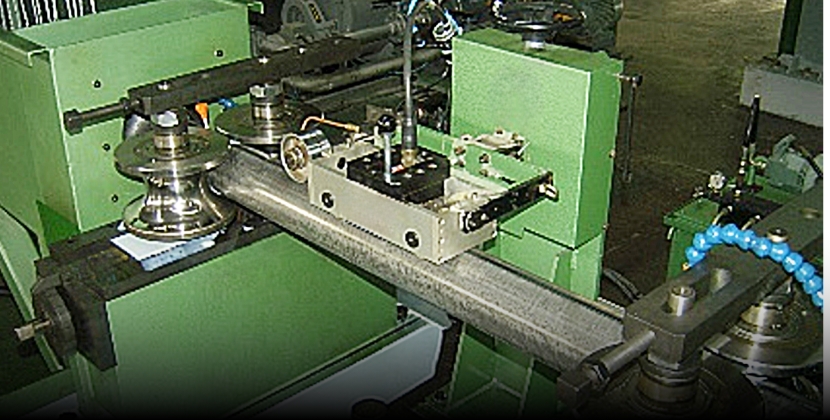

On-line ECT(Segment type)
On-line ECT(Segment type)

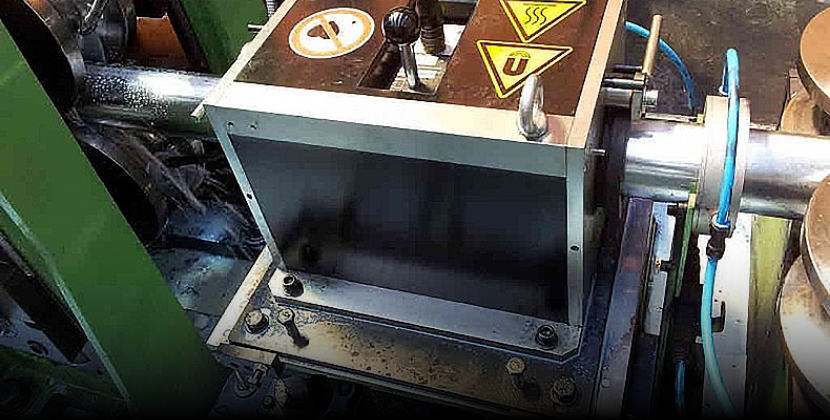

Off-line ECT(Encircling type)
Off-line ECT(Encircling type)

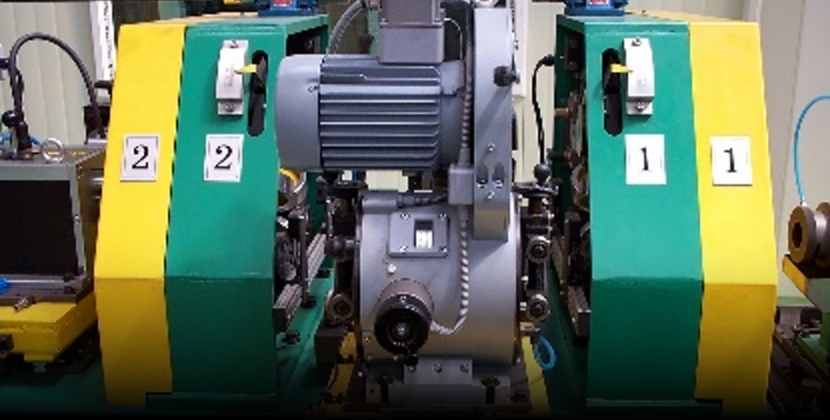

Off-line ECT(Rotating type)
Off-line ECT(Rotating type)

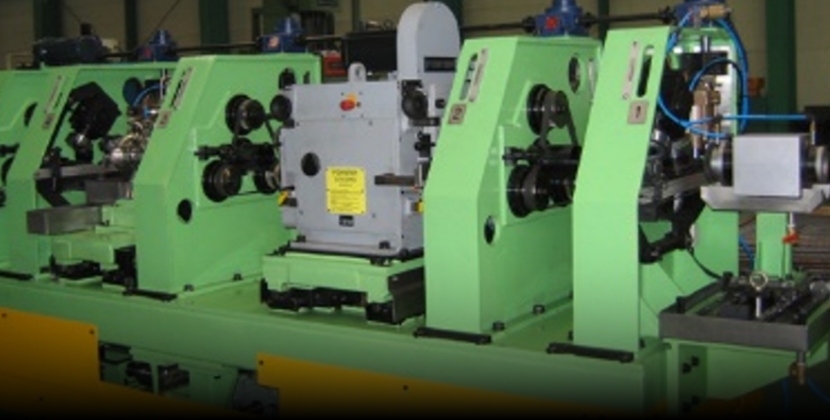

Off-line MFLT
Off-line MFLT

PERFORMANCE

Flaw
Surface flaw & subsurface flaw
Flaw Detectability
Encircling ECT : Transverse flaw
(approx. Length 3.0mm/Depth 0.1mm)
Test range - 1 ~ 240mm
Test speed - max 90m/min
Rotary ECT : Longitudinal flaw
(approx. Length 5~20mm/Depth 0.1mm)
Test range - 2 ~ 130mm
Test speed - max 60m/min
