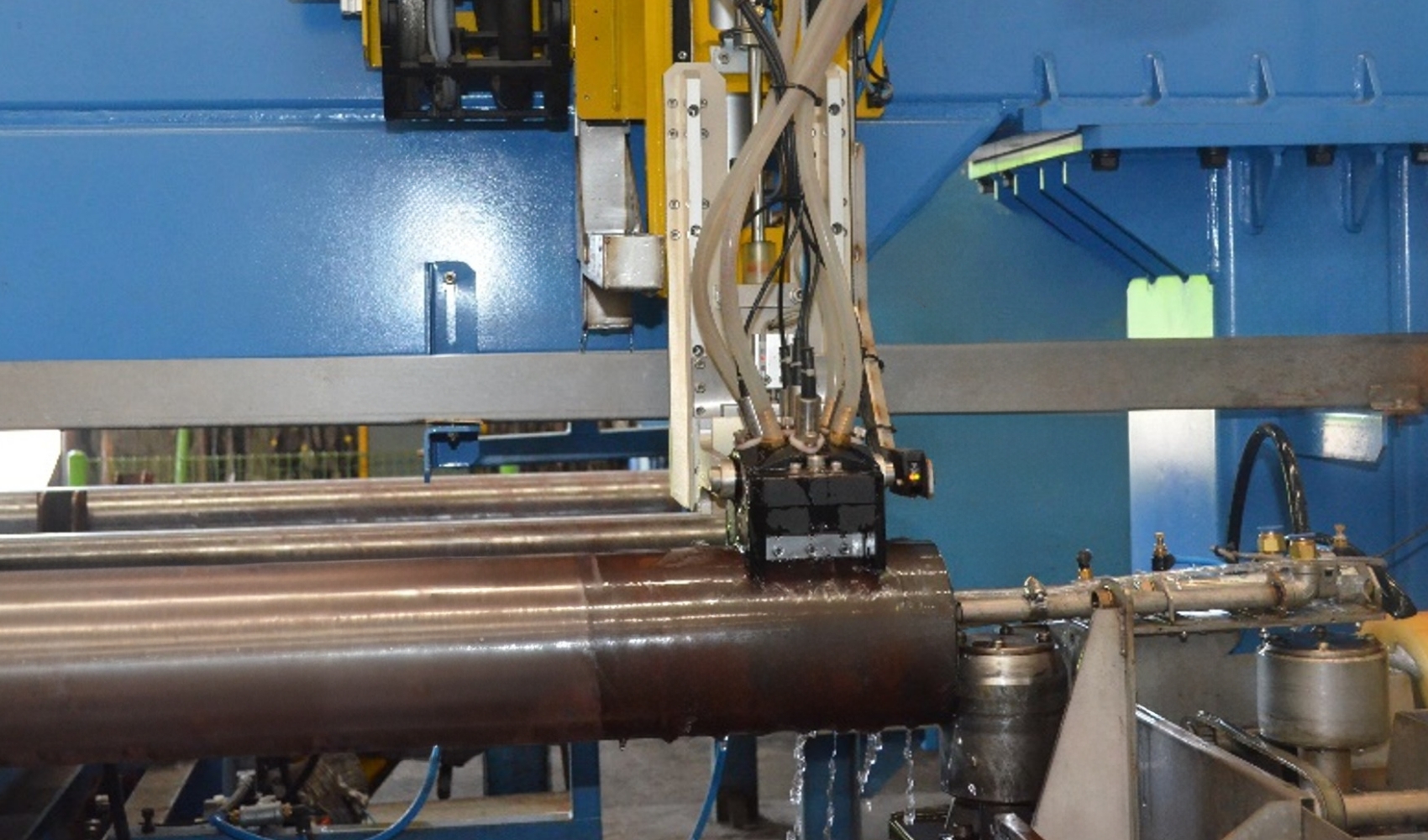

PIPE END UT
Function
- Automatic inspection for untested zone of both pipe ends

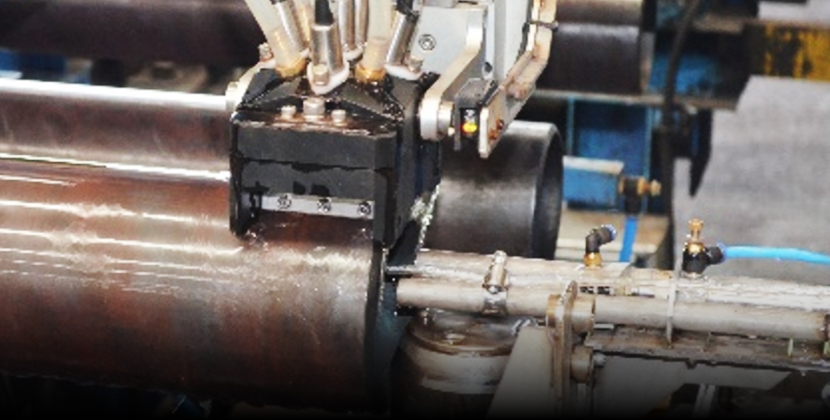

- Cluster probe block (LF + TF + WT)
- After full body crack inspection
- Single system for both pipe ends
PERFORMANCE
- Coupling
- Water-column
- Frequency
- 3.5~10 MHz
- Flaw
-
Longitudinal and transverse flaw Laminar flaw
Wall thickness monitoring
- Test method
- Pulse echo
- Flaw Detectability
-
N5 notch (1.6 mm TDH)
According to API 5CT
