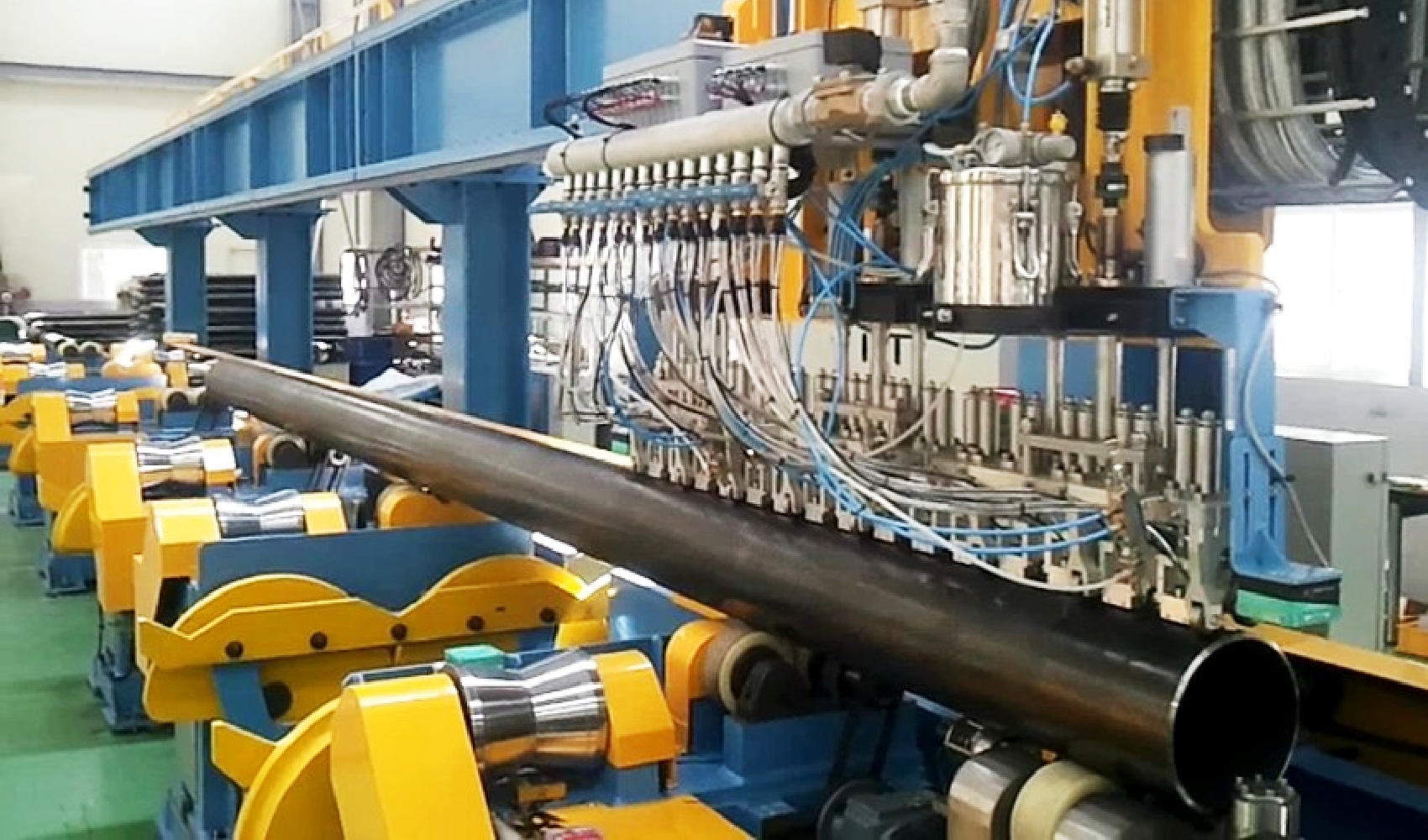

OFF-LINE FULL BODY UT
Function
- Final inspection for quality assurance of pipe body
- Adjustable test coverage depending on test requirement
- Conventional multi-ch. or advanced phased array technique
- Integrated with off-line seam UT system
PERFORMANCE
- Coupling
- Water-gap
- Frequency
- 5 MHz (dual)
- Flaw
- Laminar flaw in pipe body
- Test method
-
Pulse echo
C.V or P.A UT technique
- Flaw Detectability
-
6.4mm FBH in pipe body
(according to API5L or SHELL)

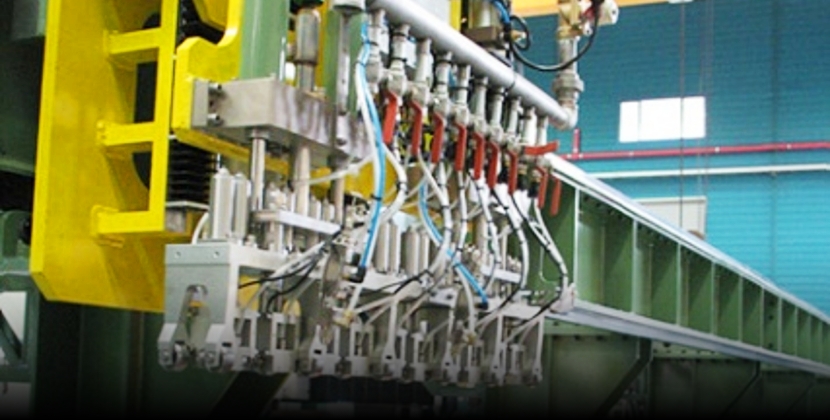

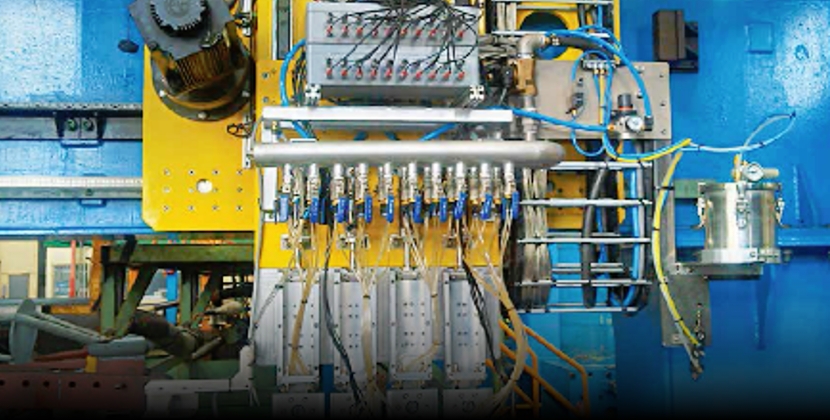

- Coverage
- 25%, 50%, 100% (depending on test requirement)
